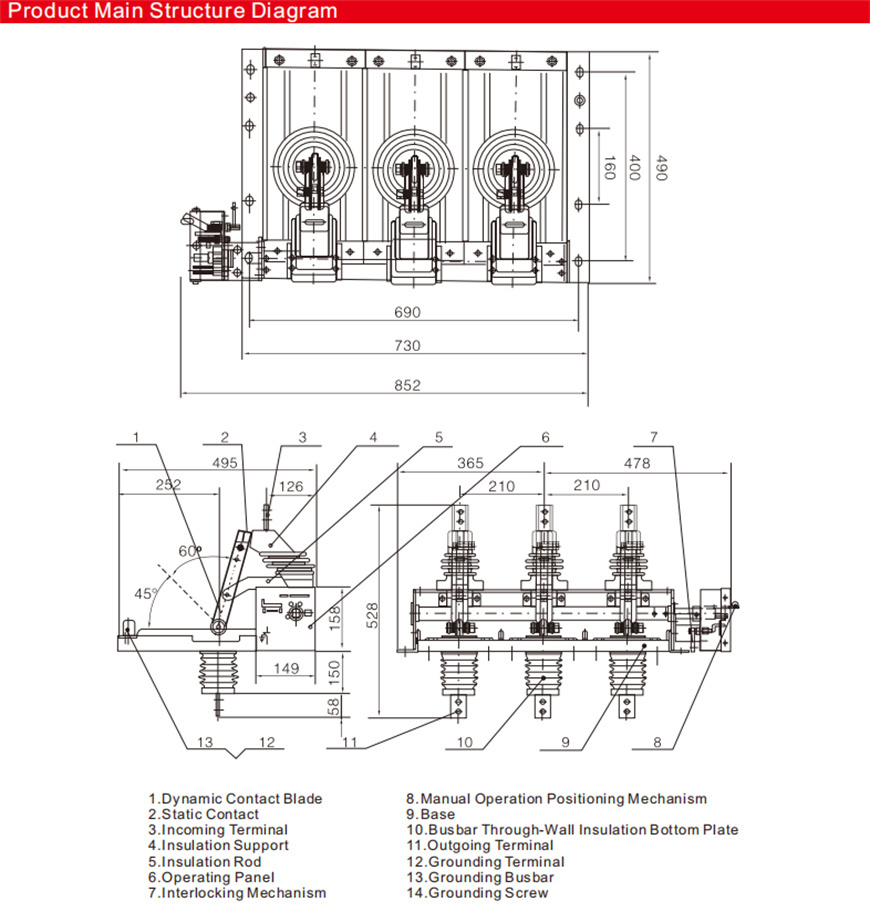

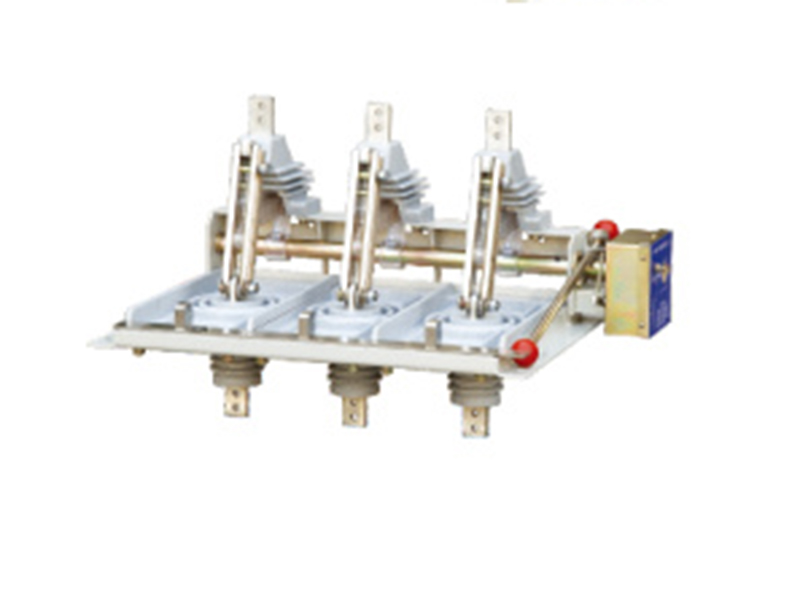

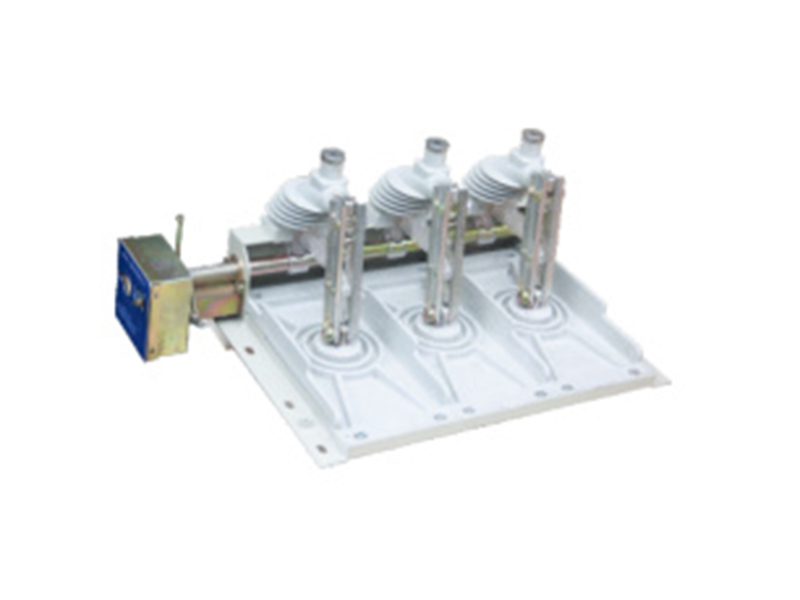

The GNF38-12KV series indoor disconnect switch is designed andmanufactured to meet the needs of compact and miniaturizeddevelopment for fixed high-voltage cabinets and ring networkcabinets.lt features a three-position structure, full insulation bottomplate, coaxial locking, and a well-designed mechanical interlockingmechanism. With its compact and small appearance, it is the optimalchoice for compact box-type switchgear.
Ambient condition
Altitude:s2000m
AmbientAir Temperature: Upper limit +40°C, Lower limit -25°CRelative Humidity: Daily average ≤95%, Monthly average ≤90%The surrounding air should not be significantly polluted by corrosive or flammable gases, water vapor, etcNo frequent severe vibrations.
